#630, 20.1' x 8' Rescue

630-Main Views

630 Main Views

630 Study Pkg

Lineage:

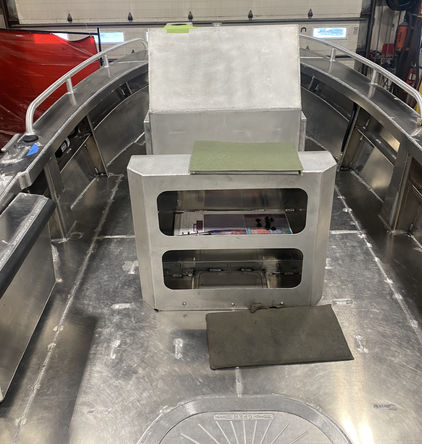

This 20' rescue boat for Falmouth (MA) Fire Department well on its way to completion at Lyman Morse Fabrication, a terrific builder in Thomaston, Maine. It is roughly derived from our design #559, and features rescue egress through both a transom door and a hull side door. The layout, of course, was developed in close collaboration with the fire department.

Photos courtesy of Falmouth Fire & Lyman Morse

Particulars:

Length (hull):

Beam (hull):

Wt. as rigged:

Wt. Bare Hull:

Deadrise Angles-

Transom:

Sta. 4:

Cutwater:

20' 1"

8' (w/o rub rails)

3,531# (150 hp OB, batt sys.)

2,327# (w/ console & tank)

14.5

22

45

Scantlings:

Bottom:

Bot. Stringers:

Chine Flats:

Sides:

Side Stringers:

Decks:

Transverse Frames:

Transom:

Keelson:

.250"

Girder & 3.50" x .250"

.250"

.190"

Shelf & 3"x.250"

.190"

.190", Flanged

.250"

.375" x 4.5"

Stock Weight (approx.)-

Blank Plate: 3,000# (at 70% yield)

Extrusion: 350#

NC Cut Parts List (pdf)
