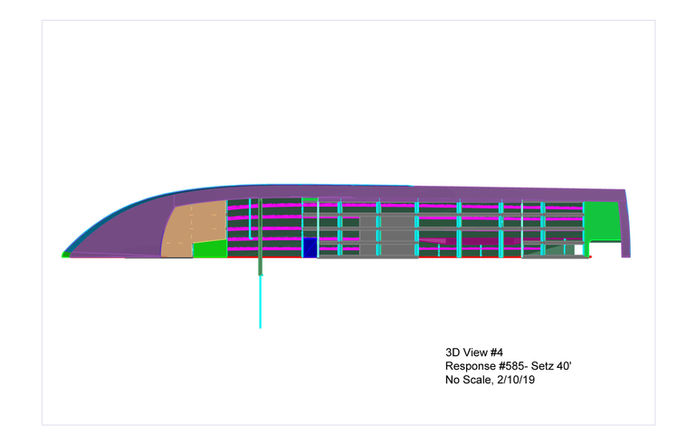

#585, 40' x 10.2'- Jet Cruiser

Lineage:

This design is currently under construction at a large industrial fabricator in Alberta, Canada.  Powered by a single 600 hp diesel with Doen jet drive, this shallow draft, relatively narrow boat with hinged flybridge is for trailerable cruising in inland and coastal waters.

Particulars:

Length (hull):

  Beam (hull):

Wt. as rigged:

Wt. Bare Hull:

​

Deadrise Angles-

  Transom:

        Sta. 4:

  Cutwater:

40'  - 0"

10' - 2.5" (w/o rub rails)

17,000#

8,500# w/ house, no interior

​



  14.5

  22.5

  46

Scantlings:

Bottom:

Bot. Stringers:

Sides:

Side Stringers:

Decks:

Transverse Frames:

Transom:

Chine Flats:

Keelson:

.250"

.250" x 4"

.190"

.250" x 3"

.190"

.250"  flanged

.250"

.375"

.500" x 5.5"

Stock Weight (Hull only, approx.)-

                    Blank Plate: 9,080#

                       Extrusion: 500#

​

NC Cut Parts List, Hull (pdf)
